Open-Top Containers: Uses, Dimensions and Shipping Costs

Quick overview

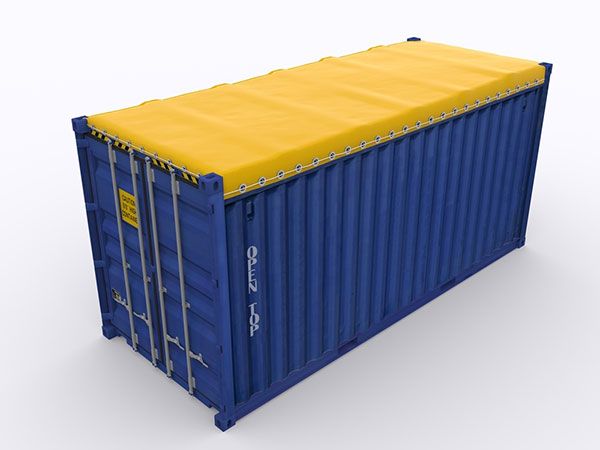

An open-top container provides access through the roof for cargo that is difficult to load through standard container doors. Conventional open-top equipment has a removable tarpaulin and roof bows.

Open-top containers are available in different sizes and designs. Their dimensions, payload and loading arrangements must be checked against the actual equipment offered.

Shipping costs depend on the route, availability, cargo dimensions and handling requirements. In-gauge cargo does not automatically qualify for a fixed price.

What is an open-top container?

An open-top container is freight equipment designed to allow loading from above. It can suit machinery, industrial components and other cargo that requires crane access or additional loading clearance.

Some designs include removable components that improve access. Confirm the roof opening, door opening and loading arrangement with the equipment provider.

Cargo may remain within the container’s accepted dimensions or extend beyond them. Any protrusion must be disclosed and approved before booking.

An open-top container does not permit cargo to exceed its rated mass, floor-loading capacity or other operating limits.

When to consider an open-top container

An open top may be suitable when:

• Cargo needs to be lowered into the container by crane.
• Its shape makes loading through the doors impractical.
• The packed shipment requires additional roof-opening clearance.
• Overheight cargo can be carried under an approved out-of-gauge arrangement.

Provide drawings or photographs where useful, together with packed dimensions, gross weight, lifting points and the cargo’s center of gravity.

Other equipment may be more suitable for a particular load. Ask the provider to assess the shipment before selecting a container type.

In-gauge and out-of-gauge cargo

In-gauge cargo remains within the dimensional envelope accepted for the equipment and service. Out-of-gauge cargo extends beyond that envelope.

The assessment should include packaging, supports, securing arrangements and any protruding parts. Cargo height relative to the tarpaulin alone is not a sufficient booking description.

Out-of-gauge cargo can affect vessel stowage, available space and inland transport. The carrier must approve the declared dimensions and handling arrangements.

In-gauge status does not guarantee equipment availability or lock the freight rate. The quotation’s validity and conditions determine the price.

How much does open-top shipping cost?

There is no universal formula that prices an open top as a standard container plus a destination surcharge.

The quotation can depend on:

• Container size and equipment availability.
• Origin, destination and sailing date.
• Cargo dimensions and weight.
• In-gauge or out-of-gauge acceptance.
• Vessel stowage and space requirements.
• Crane operations, packing and securing.
• Inland transport, terminal handling and equipment return arrangements.

Additional charges may arise at origin, during transport or at destination. Ask for an itemized quotation showing inclusions, exclusions, validity and any conditions attached to equipment or cargo approval.

Compare quotations using the same cargo details and pickup-to-delivery scope.

Dimensions and loading access

Common options include 20-foot and 40-foot open-top containers, with other designs available depending on the provider.

The nominal container size does not establish the usable loading space. Before booking, confirm:

• Internal length, width and height.
• Roof-opening dimensions.
• Door-opening dimensions.
• Removable components and clearance restrictions.
• Lashing points and floor-loading limits.
• The accepted dimensions after packing and securing.

Published equipment specifications are useful for initial planning. Final suitability should be confirmed against the container supplied.

Maximum gross mass, tare and payload

These measurements describe different limits:

Payload must accommodate the goods together with packaging, dunnage and securing materials carried inside the container.

Do not assume that every 20-foot or 40-foot open top has the same payload. Check the actual container markings and equipment specification.

The permitted cargo weight may also be restricted by floor loading, weight distribution, lifting arrangements, carrier acceptance or inland transport limits.

Packing, securing and weather protection

Plan how the cargo will be lifted, positioned and secured before loading starts. Blocking, bracing and lashing must suit the load and the container’s approved securing points.

A tarpaulin does not replace suitable cargo packaging or weather protection. Confirm whether it can be fitted over the shipment and what protection is needed if cargo protrudes above the container.

For ocean transport, arrange the required verified gross mass of the packed container.

Our container loading guide explains further checks to make before packing.

Request an open-top quotation

Provide the route, cargo-ready date, package count, packed dimensions and gross weight. Include lifting requirements, photographs or drawings, and details of any expected protrusion.

Contact iContainers to confirm equipment availability, cargo acceptance and the services required for your shipment.
